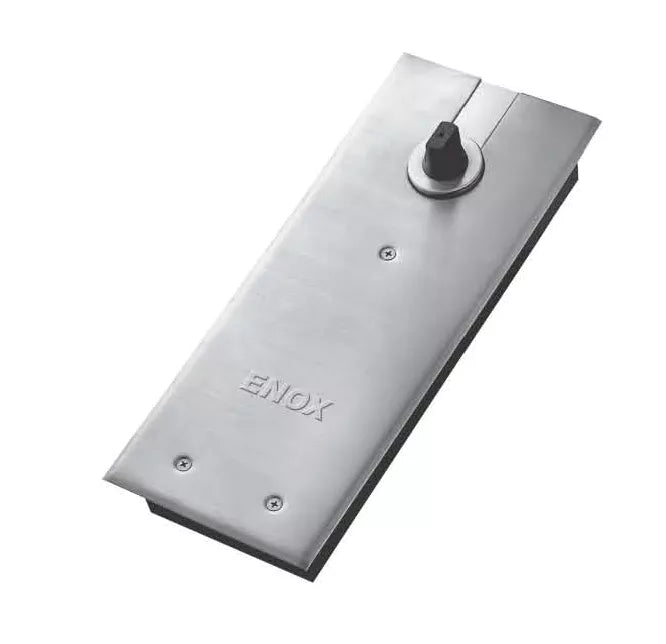

Enox Floor Spring FH 943 | FH 944 | FH 944 H

Rs. 0.00

Sale Sold out

Taxes included.

Floor spring for single-leaf single action / double action swing door. Installation in the floor.

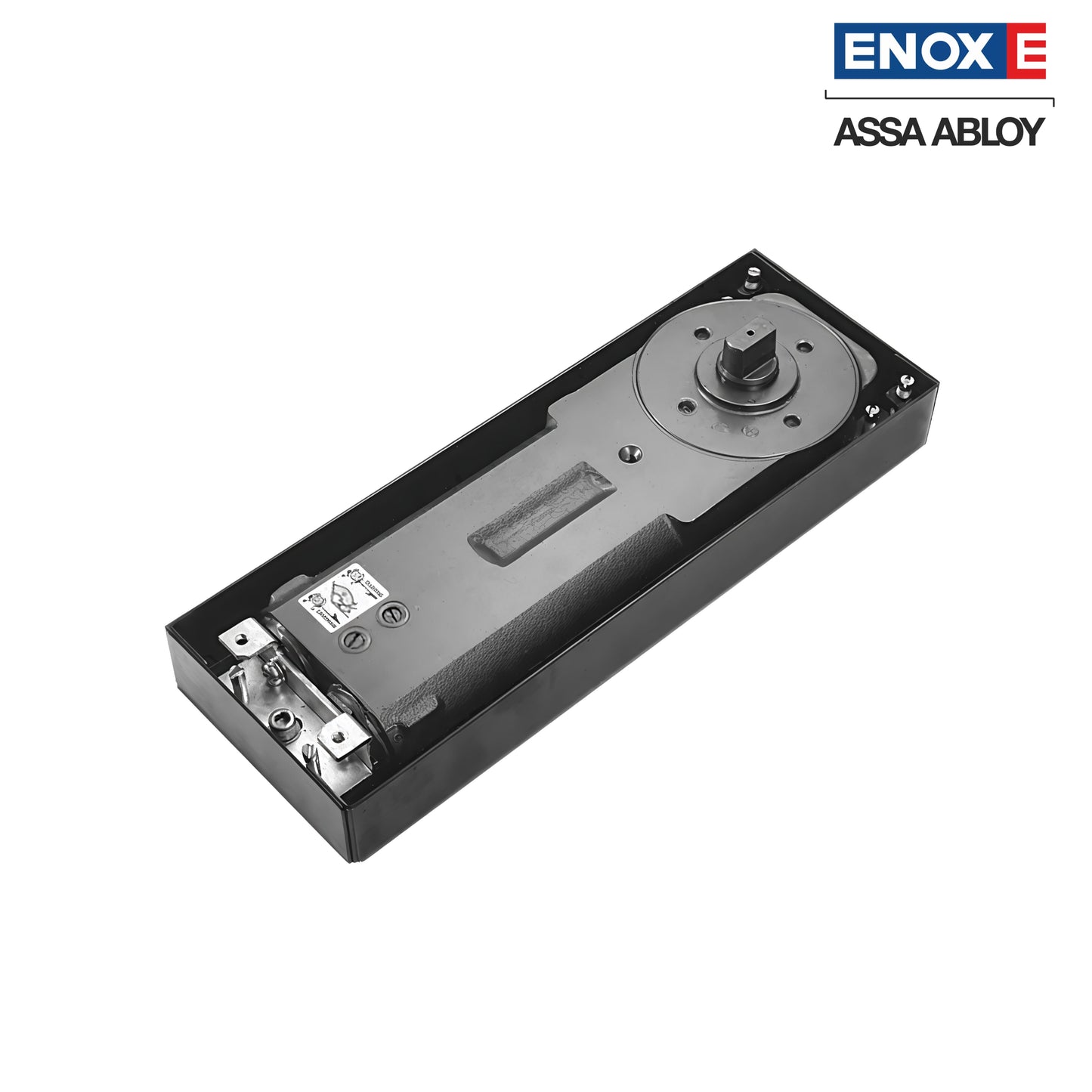

High quality cast iron mechanism body.
Provided with door stop function and explosion proof device. Suitable for wooden, glass and alu etc. all kinds of door.
Max. door opening angle in each direction : 130°.
Controllable closing angle : 90° +15° -0°.
The width inside the frame can be adjusted by 10mm, length by 7mm and height 4mm.
Maximum door width - 950mm / 1100mm / 1400mm.
Maximum door weight - 105kgs / 150kgs / 250kgs.
Tested - 500,000 Cycles.
Cover plate finish : Satin Stainless Steel.

Product features
